Overview

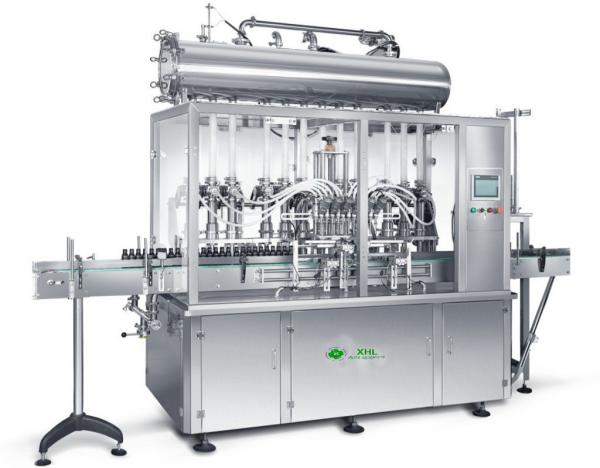

The AVF automatic thick material filling machine is improved on the basis of the similar foreign products and increasing some additional functions, making it simpler and more convenient in terms of operation, precision error, installation adjustment, equipment cleaning, maintenance and servicing. It is widely used for filling liquid products of various viscosities in food, medicine and chemical industries , etc. The machine has such features as compact and reasonable design, simple and beautiful appearance and convenient adjustment of filling volume.
Main Performance Features
- Can fully adjust the filling volume of each pump, also can make fine adjustments to each pump. Quick and easy to adjust. Adopt volumetric metering pump for filling. Servo drive is adopted to adjust the filling volume on the man-machine interface with high filling precision and wide measuring range.
- CIP/SIP cleaning sterilization system can be selected.
- Adopt stainless steel pneumatic control valve, suitable for material of different thickness.
-Leak-proof filling needle adopts pneumatic control, so there is no leakage of needle and wire drawing.
- High level liquid storage tank is adopted. Material supply is controlled by level switch. Thermal insulation system is available.
- Variable frequency speed control BY PLC, no bottle filling.
- The whole machine is designed in accordance with GMP requirements.
Main Technical Parameters
Product model: XHL-AVF-4
Filling range: 20-500ml, customized for other volumes
Ideal filling range: 20-100ml50-250ml100-500ml
Filling speed(bottles/minute)taking 100ml as an example: 30 - 40
Bottle moving mode:Linear bottle moving
Filling accuracy:≤±0.5%
Power supply:220/380V 50/60HZ
Power: 2.2KW
Compressed air pressure: 0.4 - 0.6 MPa
Air consumption: 10 m3/h
Single machine noise: ≤50dB
Net weight: 550 KG
Outline dimensions: 1300*1200*1800(mm)
About us
-Listed company founded in 2003(WINLONG GROUP CORPORATE)
-17 years’ manufacturing experience in the aseptic filling production line.
-Exclusive manufacturing factory of 20,000 square meters (Changzhou, Jiangsu)
-More than 100 famous enterprise business partners across China.
-Expanded global business network
-Proven design, efficient and reliabile products.
-Customized design to meet the customer’s demand.
Our Services and Warranty
1.We can customize the machine as customer required.
2.Available for OEM/ODM service.
3.Offer living broadcast or video support.
4.To Door installation and training service.
5.Offer filling line solution with customer requirement.
6.Customer’s design are welcomed.
7.Competitive price with on-time delivery.
8.Main spare parts one year warranty ( personal damaged except ).
We can customize with your packaging materials, production capacity and demands.
We will provide you with associated design solutions and case videos.
